Soft acrylic sheet is acrylic sheet with both weather resistance and flexibility.

Peculiar acrylic hardness was overcome and softness same as flexible PVC sheet (equal to DOP 35 phr) is realized.
Flexibility is available in addition to acrylic peculiar weather resistance and application field is now spreadin.

■ Product property

Excellent weather resistance of acrylic resin.
Softness and cold resistance strength same as flexible PVC sheet.
Capable of responding to colored material.

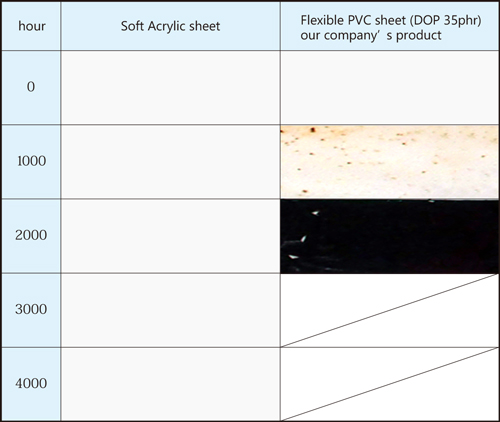

■ Weatherability comparison between Soft acrylic

※ Fade-o-meter 63°C （Light irradiation only）
※ No brown spots and no deterioration by weather are seen.

■ Examples of application

Outdoor direction sign
Sign board, Digital signage.

Soft acrylic sheet Basic property

Item Soft acrylic sheet Flexible PVC sheet（DOP35phr)
our company’s product 		Evaluation method
Thickness(mm) 0.15 0.15
Weather resistance(⊿E） 1,000 hrs 0.7 Brown spots occurrence Ultraviolet light Fade-o-Meter
Black panel temperature 63°C
(light irradiation only)
2,000 hrs 1.1 Color change to dark brown
deterioration
3,000 hrs 1.2
4,000 hrs 1.0
50% modulus(MPa) MD 13 14 Based on JIS K6732
TD 8 14
100% modulus(MPa) MD 17 18
TD 11 18
Tensile Strength(MPa) MD 21 29
TD 19 32
Elongation(%) MD 140 250
TD 200 270
Haze (%) 4.8 2.5 JIS K7105:1981
Cold resistance (-10°C ) No cracks
No flaws 		No cracks
No flaws 		Based on JIS K6772
Chemical resistance Weak acid No appearance abnormality No appearance abnormality Company test method
(Visual inspection after immersing in chemical)
Weak alkali No appearance abnormality No appearance abnormality
Alcohol Swell No appearance abnormality
Organic solvent Swell Swell
※ The above results are typical physical data, but not guaranteed.
■ Product specification
Basic specification Note
Width 1,000mm ～ 1,350mm Please consult with us.
Thickness 0.1mm ～ 1.00mm
Color Matching color available Color matching available by request
