TM
Isobutylene series gelatinous sheet
TM is gel condition sheet of polymer material with excellent vibration-damping property and impact absorption property.
IB Dragon is also Isobutylene series gel condition sheet created in Japan by combination of Kaneka’s resin development technology and Tatsuta Chemical’s sheeting technology.
In addition to vibration-damping property, strong self-adherent is available and for example, application is extended even to vibration-damper and topple-proof mat.
■ Product property
| Excellent vibration-damping property | Effective absorption of vibration energy. |
|---|---|
| Strong self-adherent | No glue left because of using no adhesive. |
| Non migration | Little transfer of ingredients to other material. |
| Crystal clear | |
| Self-adherence reproduction by water washing | |
■ Examples of application
| Vibration damper for houses | |
| Topple proof mat for furniture and OA machinery. | |
| Earthquake shake resistant mat of middle and small sized machineries for semi-conductors as first example(exclusive use metal fitting) |
TMBasic property
| Item | Standard material | Strong adherent material | Evaluation method |
|---|---|---|---|
| Hardness (HsC) | 27 | 30 | ASKER C type |
| Tensile strength(MPa） | 1.5 | 1.4 | JIS K7312(No.3) |
| Tear strength (N/mm) | 8.1 | 8.3 | JIS K7312(B type) |
| Adhesive strength(N/25mm) | 20 | 80 |
Company method(No.3) (aluminum) |
| ※ | The above results are typical physical data, but not guaranteed. |
|---|

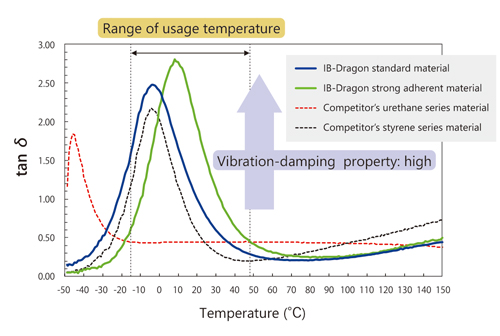

Vibration-damping property can be compared by dynamic viscoelasticity(tanδ) and IB Dragon performs high vibration-damping property in the range of usage.

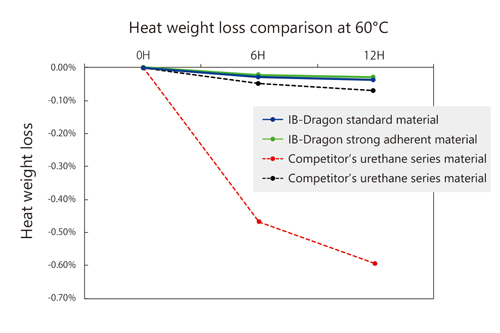

Little volatile loss in the usage temperature range and the minimum coming out gas.
| ※ | The above results are typical physical data, but not guaranteed. |
|---|
| Thickness | Shape | |
|---|---|---|
| Standard material | 0.5mm ～ 6.0mm |
30mm × 30mm ～ 300mm × 300mm Accept not only round shape but another type |
| Strong adherent material | 1.0mm ～ 6.0mm |
