TM
High clarity PP sheet
TM is High clarity PP sheet gently wrapping the products.
Having been adopted for clear cases and clear files with high clarity and excellent easy formability.

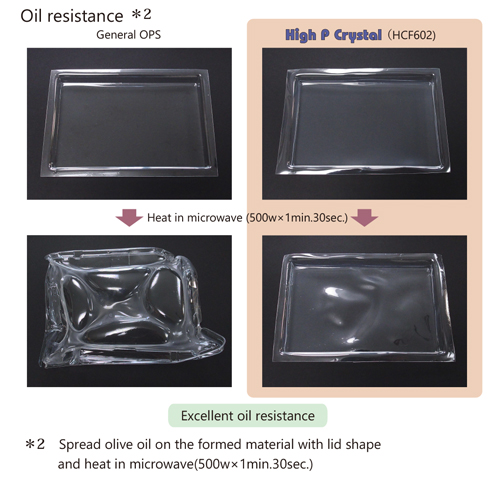

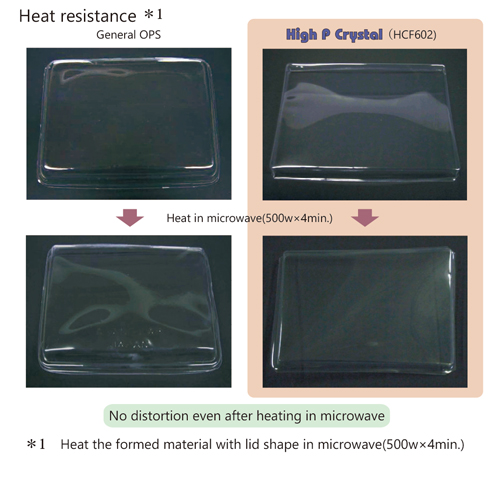

We developed the formable grade keeping clarity and making use of excellent features of oil resistance and heat resistance. The application is now extending even to the lid of box meal for convenience store.
Example of clear case
■ Product property
| High clarity |
Product in clear case can be seen clearly. Print stands out by clarity. |
|
|---|---|---|
| Various functions added | Block UV light ,Cold resistance improved etc. | |
| Excellent printability |
offset print, Silk screen print, hot stamping etc. |
|
| Easy process | deep ruling, suitable stiffness. |
| Characteristic sheet properties with high clarity ,oil resistance, heat resistance. | |
|---|---|
|
Compatible with vacuum and pressure forming (Can be vacuum formed) |
|
| Fog resistance can be added. |
■ Examples of application
| Clear case for wide range of products such as cosmetics and commodities. | |
|---|---|
| Clear holder and stationery for pupils notice holder etc. | |
| Lid material of box meal for convenience store. |
Example of Vacuum formed
TMBasic property
| Item | Application for clear case | For thermo-forming | Evaluation method | |||
|---|---|---|---|---|---|---|
| ST-500 | ST-700 | HCF-602 | ||||
| Before thermo-forming | After thermo-forming | |||||
| Yield strength (MPa) | MD | 36 | 34 | 24 | 42 |
JIS K7113:1995 |
| TD | 34 | 32 | 24 | 41 | ||
| Elastic modulus (MPa) | MD | 1,510 | 1,370 | 840 | 1,890 | |
| TD | 1,390 | 1,330 | 860 | 1,850 | ||
| Haze (%) | 4.5 | 6.0 | 8.2 | 5.3 | JIS K7105:1981 | |
| Impact strength (J) | 23°C | 0.8 | > 5.2 | > 5.2 | > 5.2 |
Company method (Du Pont type impact data) |
| ※ | Sheet thickness:0.30 mm |
|---|---|
| ※ | The above results are typical physical data, but not guaranteed. |
| Japan Hygienic Olefin And Styrene Plastics Association(JHOSPA) | ||
|---|---|---|
| High P Crystal ST-500 | Registered No.[A]PZar-58430 | |
| High P Crystal ST-700 | Registered No.[A]PZar-58431 | |
| High P Crystal HCF-600N | Registered No.[C]PZar-11379 | |
| High P Crystal HCF-600C | Registered No.[C]PZar-11379 | |
| High P Crystal HCF-602T | Registered No.[A]PZar-58582 | |
| High P Crystal HCF-602 | Registered No.[A]PZar-58585 | |
