3 dimensional embossed decorative sheet

TM is high quality decorative sheet with excellent formability achieved by Tatsuta Chemical Co. ,Ltd.

High quality surface design sheet which has not ever been available can be achieved.

This decorative sheet makes forming process possible keeping high quality.

The sheet can respond to various forming process methods with no need of coating after forming and can be harmless to environment.

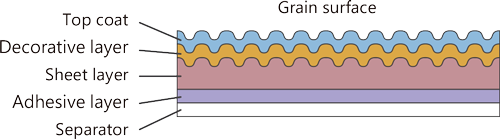

■ Configuration of TM

Changing embossing pattern

■ Compatibility of High quality design and excellent formability

New design expression with refined grain

Excellent grain retention

Exact shape follow-up action during forming

■ Forming process(Covering) method

Overlay forming (TOM, NATS, TFH etc.)

■ Examples of application

Automotive interior panel

TMBasic physical property

TM sheet only(Typical grade thickness :0.35mm)
Item Evaluation result Evaluation method
High temperature property 140°C Tensile Strength(MPa) MD 0.28 JIS K6251:2010
Dumbbell shape :Dumbbell No.2
Speed :500mm/min.
TD 0.14
140°C Elongation(%) MD 745
TD 729
Environmental property Environmental cycling
(Heat, Cold and Humidity) 		No appearance abnormality *1
Surface property*2 Abrasion resistance Taber abrasion test 4 250gf x 200times
Friction side 20mm x 20mm
Traverse abrasion test 4 500gf × 200times
Friction side 20mm x 20mm
Chemical resistance 0.1N HCl 4 Gakushin type abrasion test
200gf x 200times
Friction side 20mm x 20mm
0.1N NaOH 5
0.1N NaOH 5
10% Ethanol 5
Leather cleaner 4
Natural detergent 4.5
Benzine 4
Leather wax 4.5
Protective wax 4.5
*1 -30°C×2hrs→R.T.×0.5hr→90°C×2hrs.→R.T.×0.5hr→50°C,R.H.95%×15hrs→R.T×0.5hr
Observe surface condition after 3 cycles of above series of testing.
*2 Criteria
Grade Degree of abnormality
5 No admitted
4 Slightly admitted but not noticeable
3 Slightly but clearly admitted
2 Slightly remarkable
1 Fairly remarkable
※ The above results are typical physical data, but not guaranteed.
